Jiangyin Hangli Technology Co., Ltd.

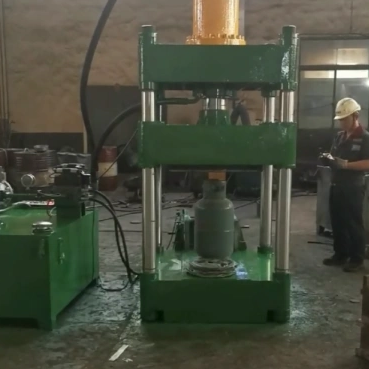

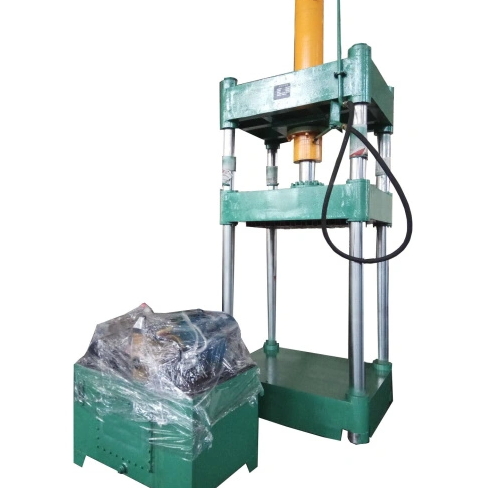

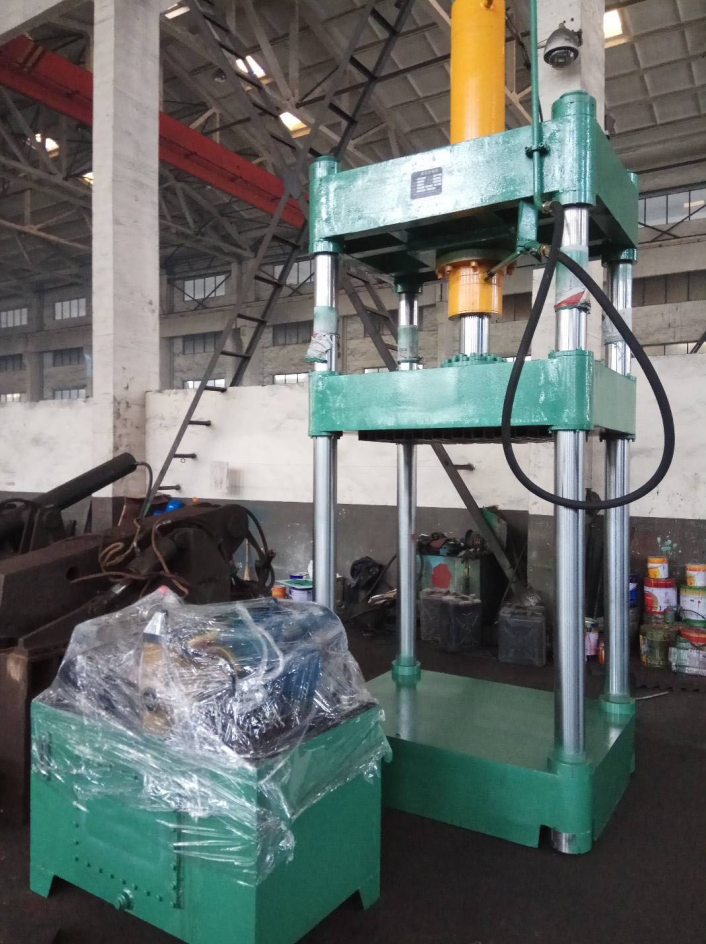

Model No.: Y32-100 Four Column Hydraulic Press
Brand: hangli
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Motor, Pump
Warranty Period: 1 Year
Core Selling Point: Competitive Price
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Building Material Shops, Other
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
The Y32-100 Four Column Hydraulic Press is engineered for high-performance industrial applications, boasting a powerful 100-ton capacity. This machine's four-column design ensures exceptional stability and precision, making it ideal for complex metal forming, stamping, and deep-drawing tasks. Constructed from premium-grade steel, the Y32-100 is built to withstand the rigors of continuous operation without compromising on quality or efficiency. It features an advanced hydraulic system that allows for precise control over pressing actions, and its programmable logic controller (PLC) enables easy customization and monitoring of operations. Safety is prioritized with integrated features such as overload protection and emergency stop mechanisms. The Y32-100 is a critical asset in sectors like automotive manufacturing, aerospace parts production, and heavy metal fabrication, offering unmatched reliability and productivity for demanding projects.
Model | Maximum pressure (KN) | Slide stroke （mm） | Opening height（mm） | Workbench size （mm) | Power（KW） |
Y32-25 | 250KN | 250 | 600 | 500*500 | 5.5 |
Y32-40 | 400KN | 350 | 700 | 500*500 | 5.5 |
Y32-63 | 630KN | 400 | 700 | 700*700 | 7.5 |
Y32-100 | 1000KN | 600 | 900 | 700*700 | 11 |
Y32-160 | 1600KN | 700 | 1100 | 800*800 | 15 |
Y32-200 | 2000KN | 700 | 1100 | 900*900 | 15 |
Y32-250 | 2500KN | 800 | 1200 | 1200*1200 | 22 |
Y32-315 | 3150KN | 800 | 1200 | 1400*1400 | 30 |
Y32-500 | 5000KN | 900 | 1500 | 1600*1600 | 37 |
