Jiangyin Hangli Technology Co., Ltd.

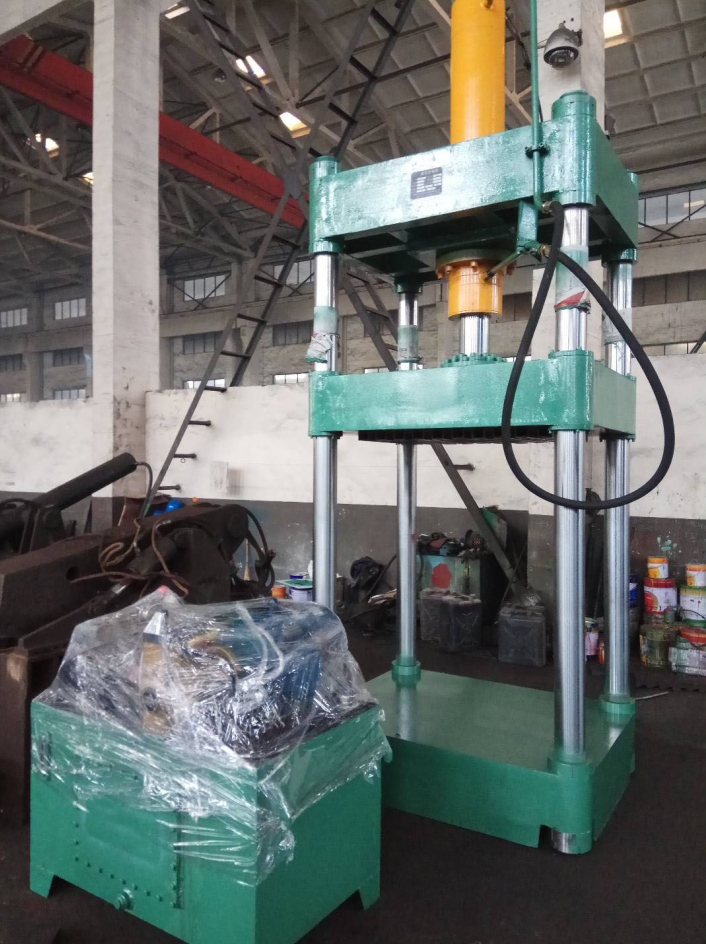

Model No.: Y32-160 Four Column Hydraulic Press
Brand: hangli
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Motor, Pump
Warranty Period: 1 Year
Core Selling Point: Competitive Price
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Applicable Industry: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
The Y32-160 Four Column Hydraulic Press, with its formidable 160-ton pressing capacity, is a powerhouse designed for heavy-duty industrial applications. This robust machine features a four-column design that provides unparalleled stability and precision, essential for high-quality forming, stamping, and deep drawing operations. Constructed from high-strength steel, the Y32-160 is built to endure the toughest manufacturing environments, ensuring long-term reliability and performance.
Equipped with a sophisticated hydraulic system, the press offers smooth and controlled operations, allowing for precise manipulation of materials across a range of thicknesses and types. The programmable logic controller (PLC) enables operators to easily set and adjust operational parameters, ensuring optimal performance for specific tasks. Safety is a key aspect of the Y32-160 design, incorporating multiple safeguards including emergency stops and overload protection to protect both the machine and its operators.
Ideal for applications in sectors such as automotive, aerospace, and metal fabrication, the Y32-160 Four Column Hydraulic Press is a vital tool for businesses seeking to enhance efficiency and achieve consistent, high-quality results in their production processes.
Model | Maximum pressure (KN) | Slide stroke （mm） | Opening height（mm） | Workbench size （mm) | Power（KW） |
Y32-25 | 250KN | 250 | 600 | 500*500 | 5.5 |
Y32-40 | 400KN | 350 | 700 | 500*500 | 5.5 |
Y32-63 | 630KN | 400 | 700 | 700*700 | 7.5 |
Y32-100 | 1000KN | 600 | 900 | 700*700 | 11 |
Y32-160 | 1600KN | 700 | 1100 | 800*800 | 15 |
Y32-200 | 2000KN | 700 | 1100 | 900*900 | 15 |
Y32-250 | 2500KN | 800 | 1200 | 1200*1200 | 22 |
Y32-315 | 3150KN | 800 | 1200 | 1400*1400 | 30 |
Y32-500 | 5000KN | 900 | 1500 | 1600*1600 | 37 |
