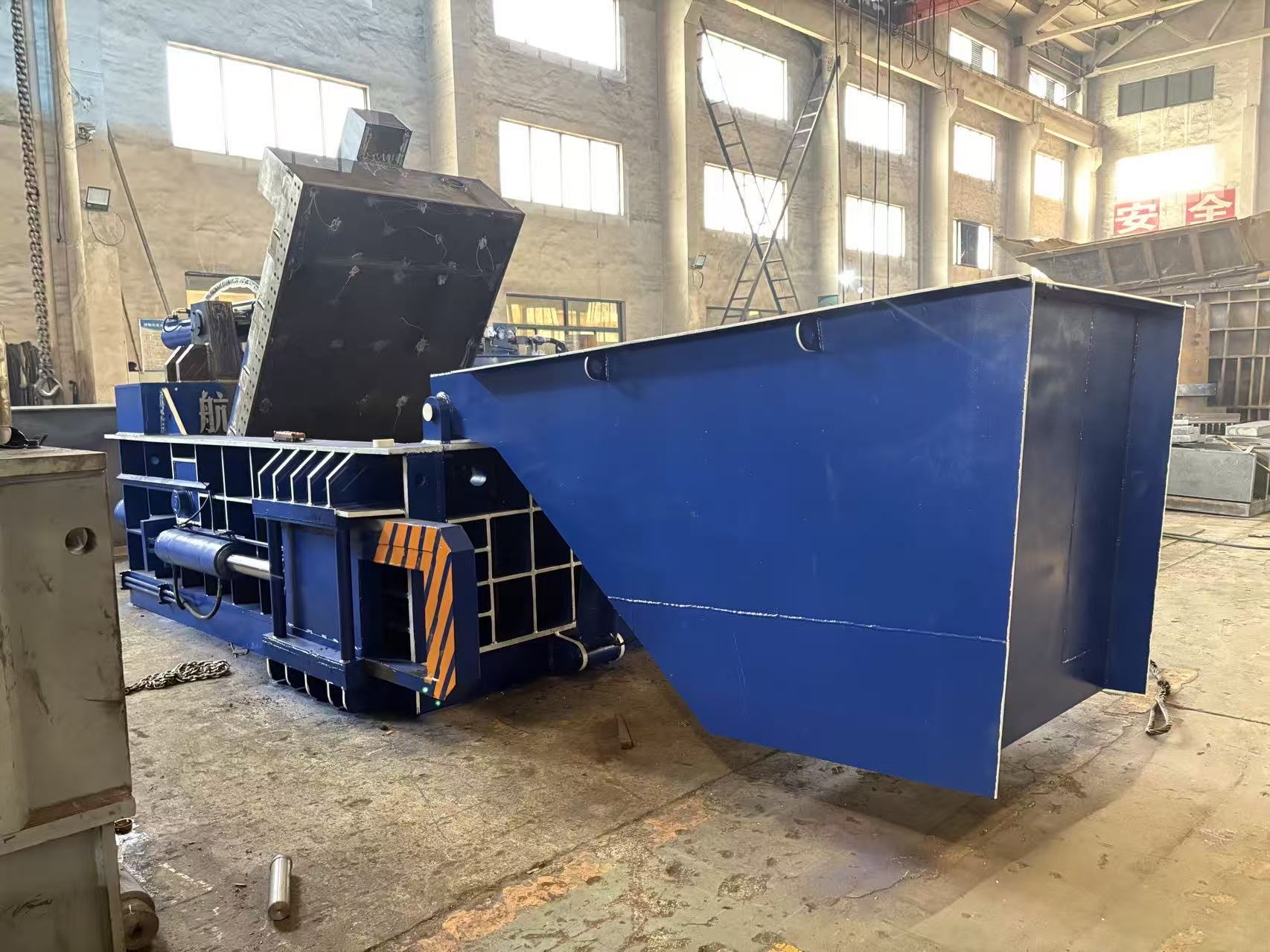

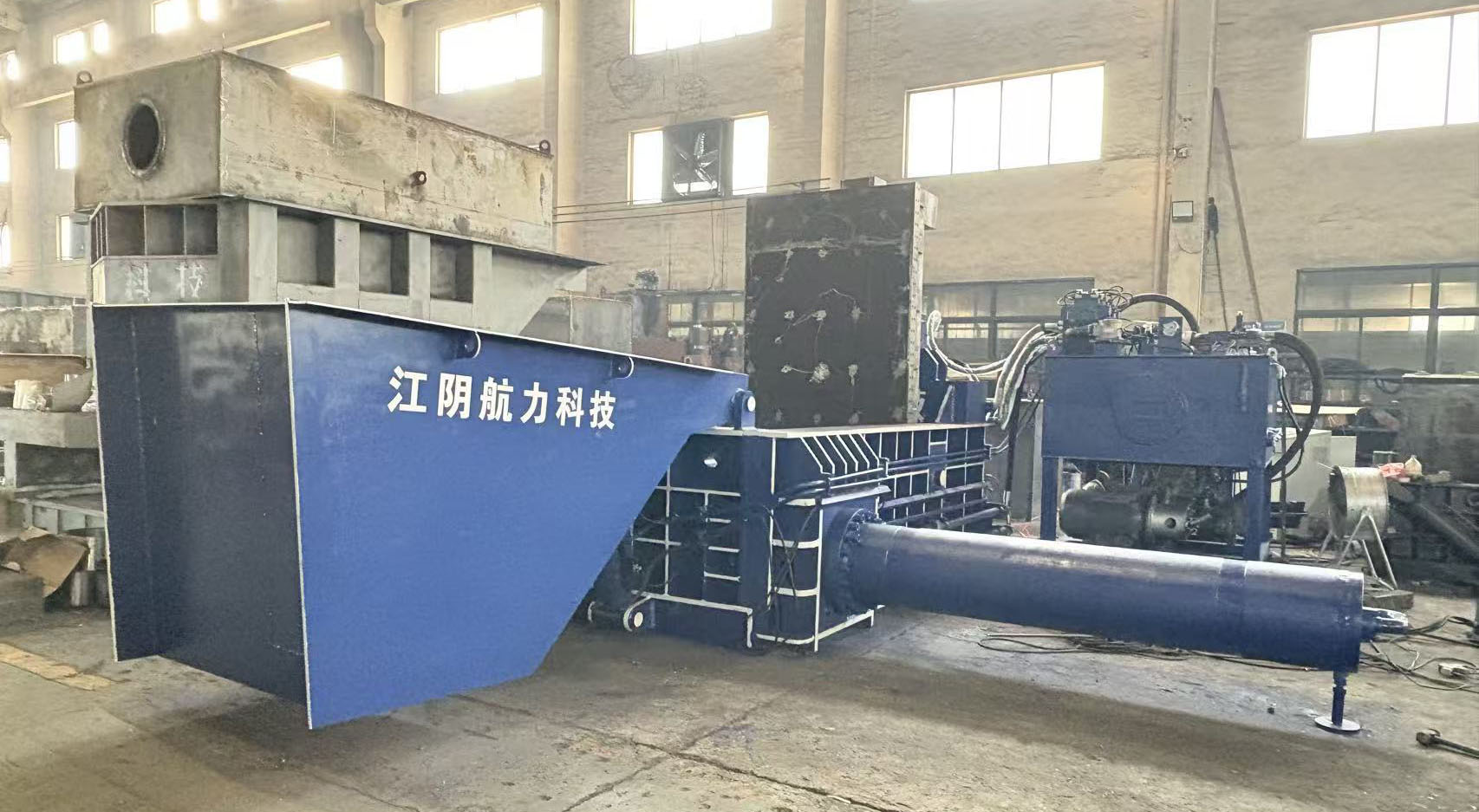

Hydraulic metal strapping machine

Technical parameters and configuration instructions for 300 ton metal strapping machine

Applicable enterprises: scrap metal recycling stations, renewable resource companies, steel mills, dismantling plants, etc

Manufacturer: Jiangyin Hangli Technology Co., Ltd

1、 Main technical parameters:

Rated pressure: 300 tons (3000kN)

Packing capacity: can compress 1-2 tons of scrap metal per use (depending on material density)

Package size: 400 × 400 × 400 mm (can be customized according to customer needs)

Box size: 2000 × 1500 × 900 mm (length × width × height)

Feeding method: Scrap metal bucket dumping feeding (equipped with waste bucket, convenient for manual or forklift feeding)

Packing speed: about 6-8 times/hour (depending on the type and density of the material)

Hydraulic system: Efficient dual pump oil supply system, ensuring stable pressure and smooth operation

Control mode: PLC automatic control+touch screen human-machine interface, easy to operate, fault self check

Safety protection: emergency stop button, safety light barrier, threshold protection device, in compliance with industrial safety standards

2、 Equipment features:

High strength structural design: using high-quality alloy steel welded frame, compressive and wear-resistant, with a long service life.

Large capacity material box: 2000 × 1500 × 900mm material box, can be continuously loaded, reducing downtime and improving efficiency.

Efficient packaging and molding: Hydraulic drive, quickly completing the entire process of compression, locking, and unpacking.

Maintainability: Modular design, key components such as oil cylinders, molds, and blades can be quickly replaced.

Energy saving and environmental protection: Low noise hydraulic system, low energy consumption, in line with green production requirements.

3、 Supporting suggestions:

Can be paired with: scrap metal sorting machine, conveyor belt, gantry crane/forklift, automatic strapping machine, etc., to achieve assembly line operation.

It is recommended to equip a dedicated scrap metal hopper (customizable) to facilitate the pouring of scattered scrap iron, scrap steel, aluminum shavings, etc. into the material box.

4、 Service support:

Jiangyin Hangli Technology Co., Ltd. provides:

Free on-site installation and debugging

Operation training and technical guidance

One year warranty, lifetime after-sales maintenance

Provide spare parts list and remote technical support

Examples of application scenarios:

Centralized compression and packaging of metal materials such as scrap steel, scrap iron, scrap aluminum, and scrap copper;

Improve transportation efficiency and reduce logistics costs;

After packaging, it is convenient for storage, weighing, and sales.
