Model No.: Y32-315 Four Column Hydraulic Press
Brand: hangli
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Motor, Pump
Warranty Period: 1 Year
Core Selling Point: Competitive Price
Out-of-warranty Service: Field Maintenance And Repair Service, Video Technical Support, Online Support, Spare Parts
Applicable Industry: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

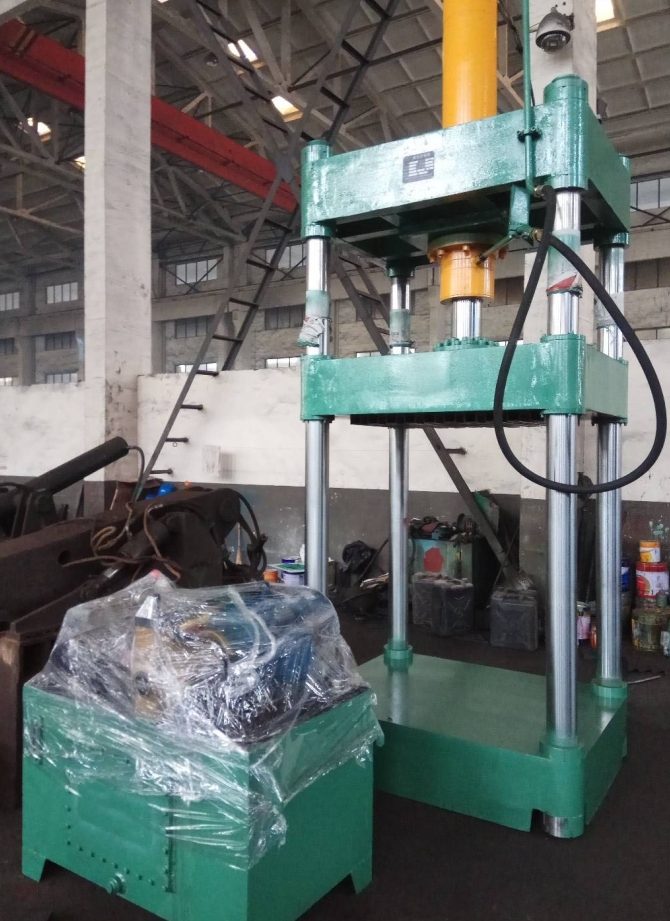

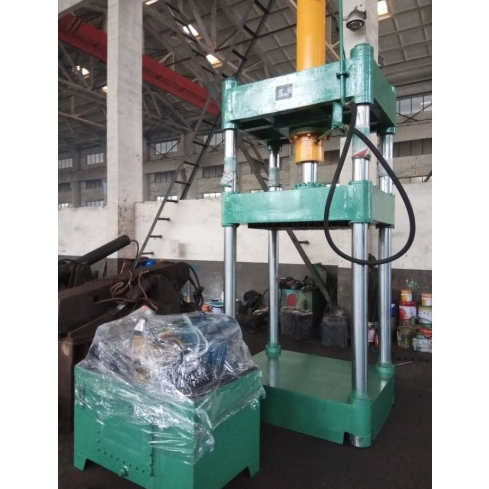

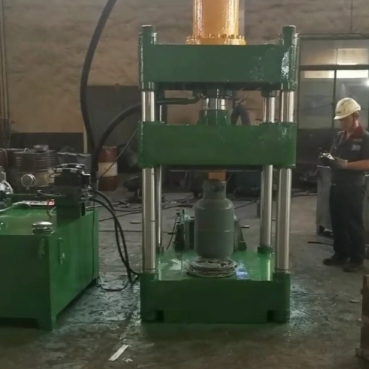

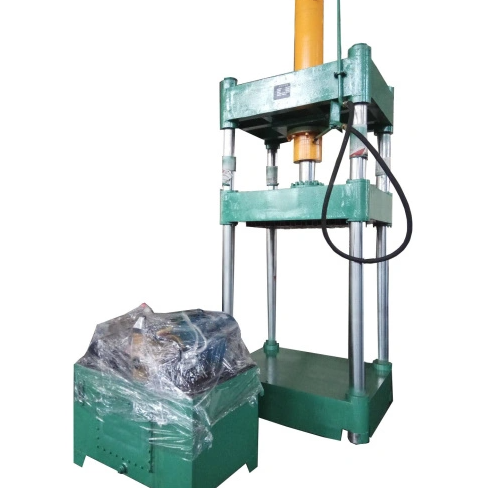

The Y32-315 Four Column Hydraulic Press is a formidable piece of industrial machinery designed for the most demanding manufacturing tasks. With a robust 315-ton pressing capacity, this press excels in applications requiring high precision and immense force, such as metal forming, stamping, and deep drawing. Its four-column design ensures optimal stability and uniform pressure distribution across the workpiece, significantly enhancing the quality of the finished products.
Constructed from premium steel, the Y32-315 is built to endure strenuous operations while maintaining high performance and durability. The advanced hydraulic system facilitates smooth and precise operations, equipped with customizable settings for stroke and pressure that can be adjusted to suit various material specifications and project requirements.
Safety is a key feature of the Y32-315, incorporating multiple safety mechanisms including emergency stops and overload protection to ensure operator safety and machine integrity. Ideal for industries like automotive manufacturing, aerospace components production, and heavy machinery, the Y32-315 Four Column Hydraulic Press is a cornerstone for businesses seeking efficiency, precision, and reliability in their manufacturing processes.
Model | Maximum pressure (KN) | Slide stroke （mm） | Opening height（mm） | Workbench size （mm) | Power（KW） |
Y32-25 | 250KN | 250 | 600 | 500*500 | 5.5 |
Y32-40 | 400KN | 350 | 700 | 500*500 | 5.5 |
Y32-63 | 630KN | 400 | 700 | 700*700 | 7.5 |
Y32-100 | 1000KN | 600 | 900 | 700*700 | 11 |
Y32-160 | 1600KN | 700 | 1100 | 800*800 | 15 |
Y32-200 | 2000KN | 700 | 1100 | 900*900 | 15 |
Y32-250 | 2500KN | 800 | 1200 | 1200*1200 | 22 |
Y32-315 | 3150KN | 800 | 1200 | 1400*1400 | 30 |
Y32-500 | 5000KN | 900 | 1500 | 1600*1600 | 37 |
