Jiangyin Hangli Technology Co., Ltd.
Model No.: Y32-63 Four Column Hydraulic Press
Brand: hangli
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Motor, Pump
Warranty Period: 1 Year
Core Selling Point: Competitive Price
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Applicable Industry: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

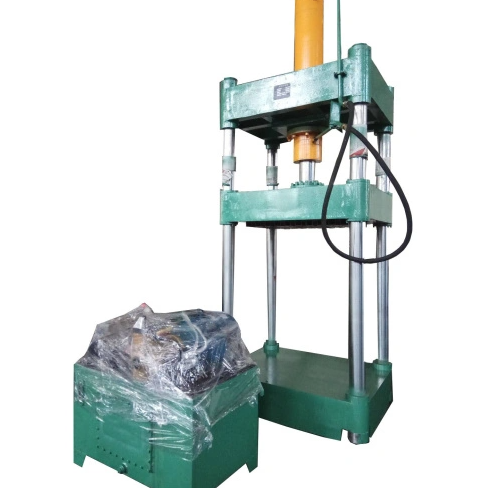

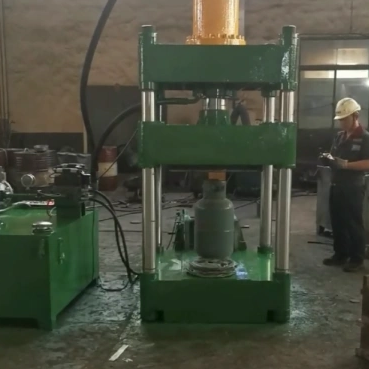

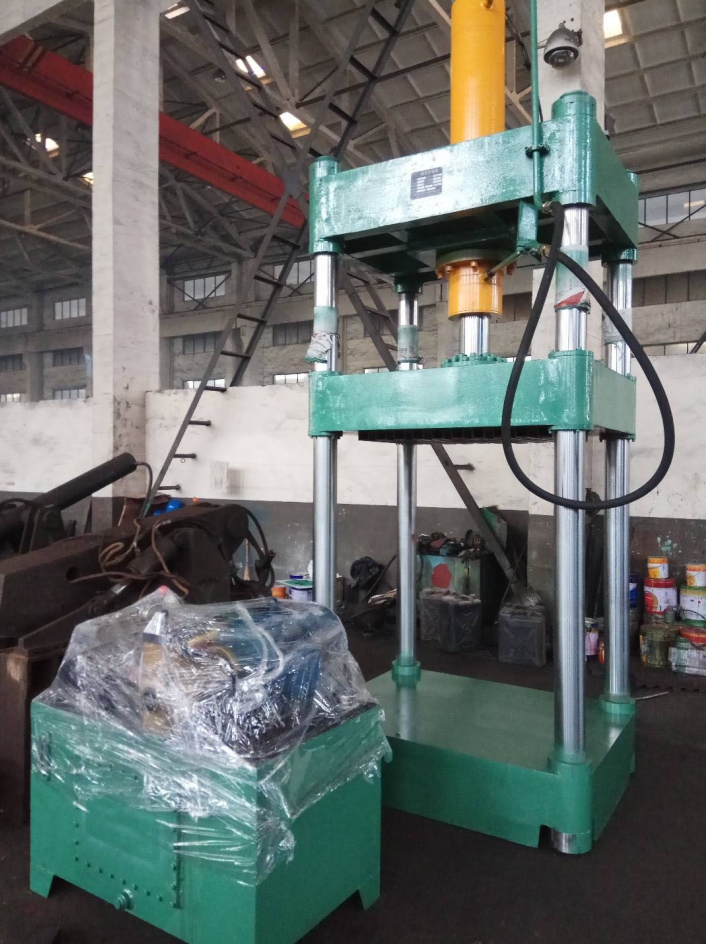

The Y32-63 Four Column Hydraulic Press is a powerhouse in the realm of industrial manufacturing, designed to handle demanding tasks with a pressing capacity of 63 tons. Engineered for precision and durability, its four-column configuration ensures stable, even force distribution, crucial for achieving flawless results in forming, stamping, and drawing operations. The press is built with high-quality steel, enhancing its lifespan and performance under continuous use. Equipped with an advanced hydraulic system and a programmable logic controller (PLC), the Y32-63 offers customizable settings and real-time adjustments, making it a versatile tool for various applications in sectors such as automotive, aerospace, and metal fabrication. Safety features like emergency stops and overload protection ensure operator safety, making the Y32-63 Four Column Hydraulic Press a reliable and efficient choice for enhancing production efficiency.
Model | Maximum pressure (KN) | Slide stroke （mm） | Opening height（mm） | Workbench size （mm) | Power（KW） |
Y32-25 | 250KN | 250 | 600 | 500*500 | 5.5 |
Y32-40 | 400KN | 350 | 700 | 500*500 | 5.5 |
Y32-63 | 630KN | 400 | 700 | 700*700 | 7.5 |
Y32-100 | 1000KN | 600 | 900 | 700*700 | 11 |
Y32-160 | 1600KN | 700 | 1100 | 800*800 | 15 |
Y32-200 | 2000KN | 700 | 1100 | 900*900 | 15 |
Y32-250 | 2500KN | 800 | 1200 | 1200*1200 | 22 |
Y32-315 | 3150KN | 800 | 1200 | 1400*1400 | 30 |
Y32-500 | 5000KN | 900 | 1500 | 1600*1600 | 37 |
