High-Capacity Shearing Equipment

High-Capacity Shearing Equipment

Get Latest Price
Payment Type:L/C,T/T
Min. Order:1 set
Product Attributes

Model No.: Q15-250B Gantry Shearing Machine

Brand: hangli

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Motor, Pump

Warranty Period: 1 Year

Type Of Machine: Hydraulic Guillotine Shears

Machinable Material: Brass / Copper, Alloy, Carbon Steel, Aluminum, Stainless Steel

Core Selling Point: Competitive Price

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Applicable Industry: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None


Packaging & Delivery

Selling Units:Set/Sets

Product Description

The Q15-250B Gantry Shearing Machine stands as a pivotal asset in the metal processing industry, specifically designed for the demanding tasks of cutting large and varied types of scrap metal. This model, with its formidable 250-ton shearing force, is perfectly suited for environments like metal recycling facilities and heavy-duty fabrication plants, where durability and reliability are critical.

This shearing machine is built around a strong gantry frame that ensures optimal stability and robust performance even under intense operational pressures. The Q15-250B’s hydraulic system is engineered to deliver high-speed shearing actions, enabling efficient and precise cuts that significantly enhance throughput and material handling efficiency.

Operational safety is paramount with the Q15-250B, which incorporates several advanced safety features, including emergency shutdown capabilities and rigid protective mechanisms to safeguard operators during use. Furthermore, the machine is equipped with an intuitive control panel that simplifies the operation process, allowing for smooth and effortless integration into existing production lines.

The Q15-250B Gantry Shearing Machine not only increases productivity but also ensures consistent results, making it an indispensable tool for companies aiming to optimize their metal processing operations with a reliable and high-performance solution.

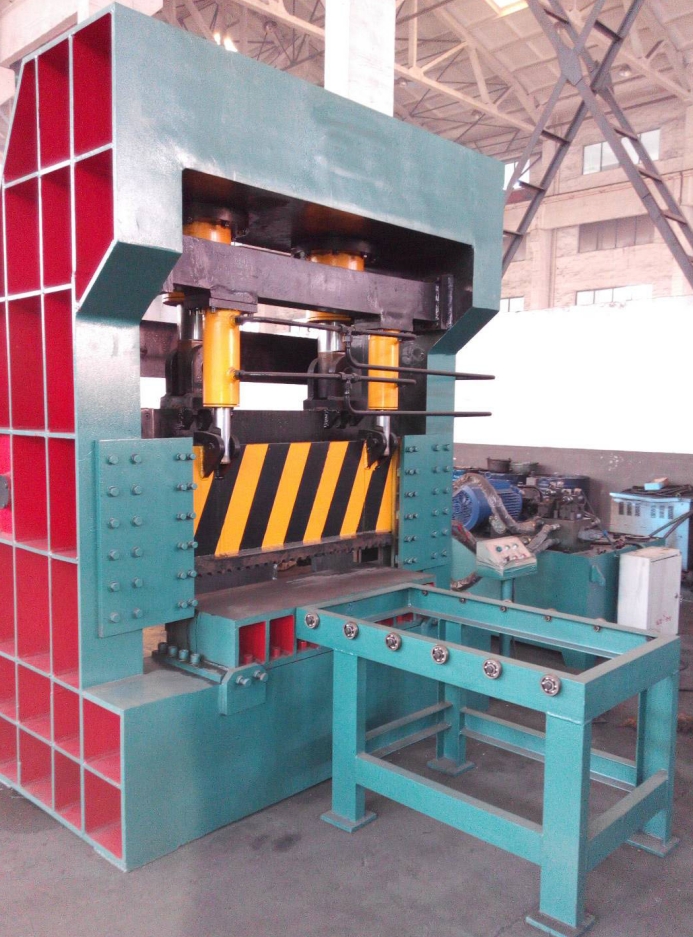

20240511100323 Png

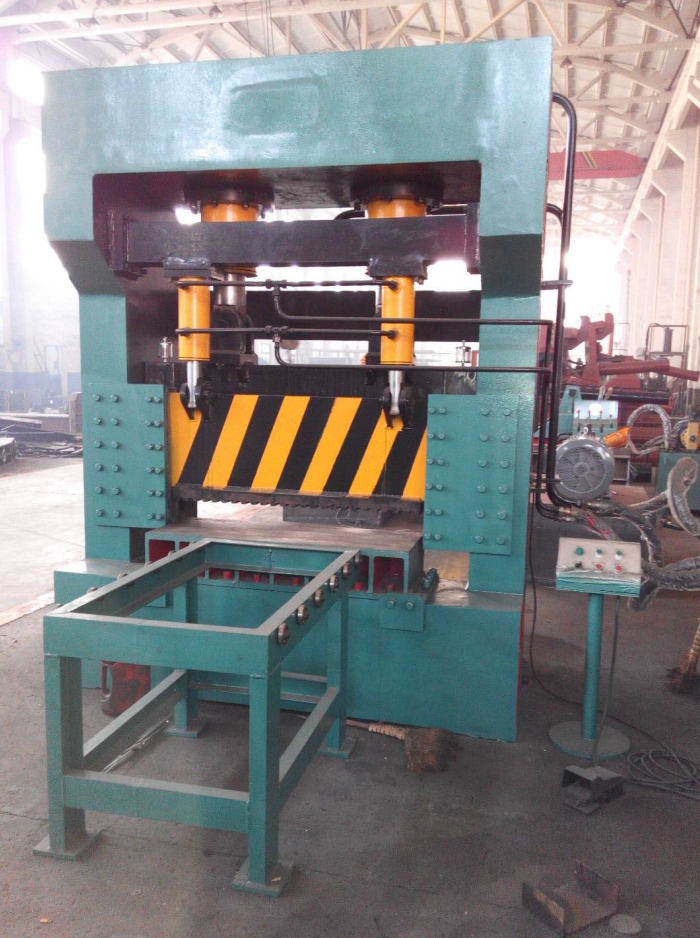

20240511100312 Png

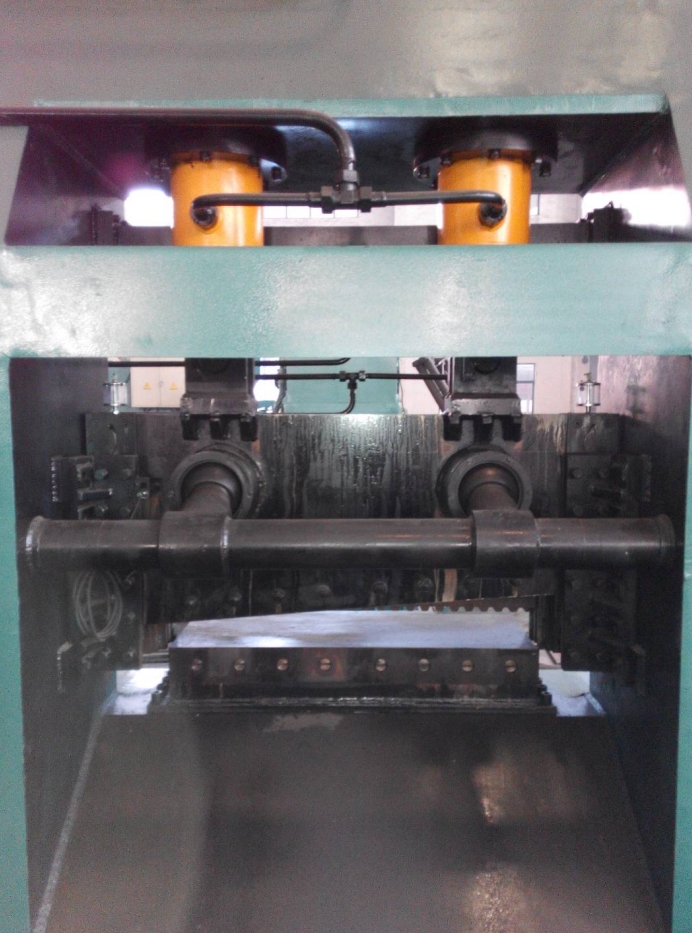

20240511100304 Png




Q15龙门剪切机技术参数/Technical parameters of Q15 gantry shearing machine
型号 Model最大剪切力 (KN)Maximum shear force刀口宽度(mm)Blade width 剪切频率(T/M)Shear frequency剪料尺寸 Cutting size功率(KW)Power
Q15-2002000KN12006-820*120022
Q15-250A2500KN12006-820*120022*15
Q15-250B2500KN16006-820*160022*15
Q15-315A3150KN12006-835*120022*15
Q15-315B3150KN16006-830*160022*22
Q15-4004000KN16006-830*160022*22
Q15-5005000KN16006-835*160030*30
