Industrial Gantry Shearing Machine Series
Get Latest Price| Payment Type: | L/C,T/T |
| Min. Order: | 1 set |
Model No.: Q15-200 Gantry Shearing Machine
Brand: hangli
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Motor, Pump
Warranty Period: 1 Year
Type Of Machine: Hydraulic Guillotine Shears
Machinable Material: Brass / Copper, Alloy, Carbon Steel, Aluminum, Stainless Steel
Core Selling Point: Competitive Price
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Applicable Industry: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

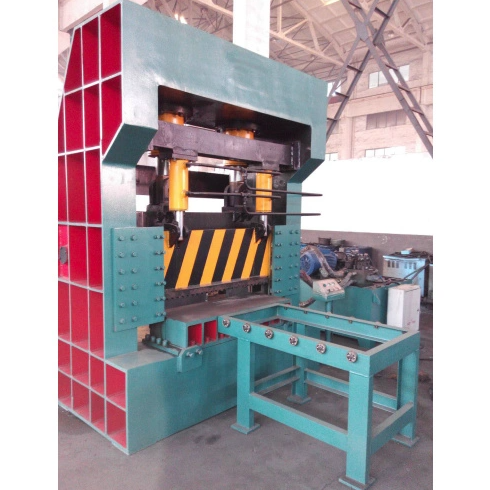

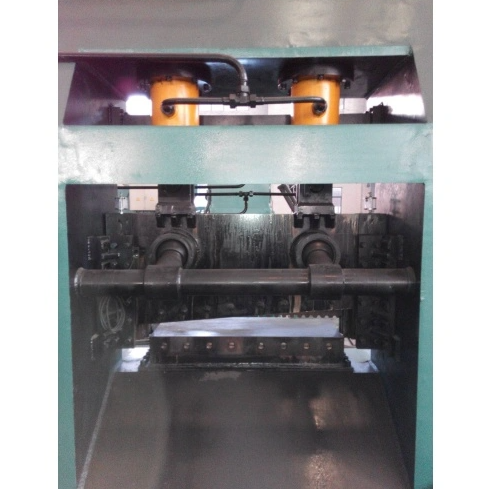

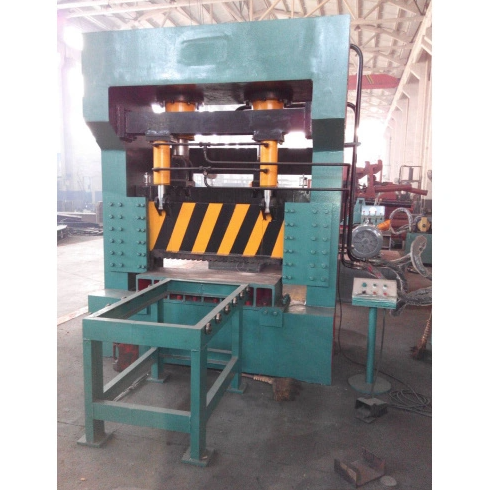

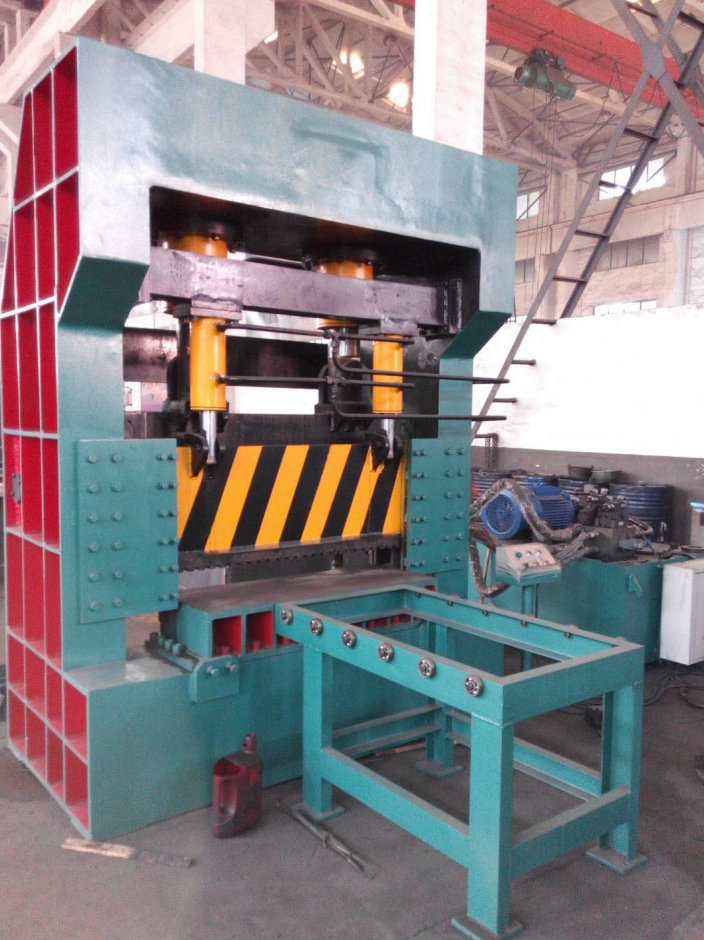

The Q15 Series Gantry Shearing Machine is a robust and highly efficient piece of equipment designed for heavy-duty metal processing. This machine is specifically engineered to handle large volumes of scrap metal, providing a powerful solution for shearing operations in recycling yards, metal processing facilities, and manufacturing plants.
Constructed with durability in mind, the Q15 Series features a strong gantry frame that ensures stability and longevity under the toughest working conditions. Its powerful hydraulic system enables it to cut through various types of metal with precision and ease, making it suitable for processing a wide range of scrap materials, including steel, aluminum, copper, and more.
One of the key advantages of the Q15 Series Gantry Shearing Machine is its high-performance shearing capability. The machine can process large pieces of scrap metal quickly and efficiently, significantly reducing the time and effort required for metal preparation. This efficiency not only boosts productivity but also helps in lowering operational costs.
Safety is a critical aspect of the Q15 Series design. It comes equipped with several safety features, such as emergency stop buttons, safety guards, and automatic shut-off systems, to protect operators from potential accidents and ensure a safe working environment.
In addition to its robust performance and safety features, the Q15 Series Gantry Shearing Machine offers ease of operation. Its user-friendly controls and automated systems allow operators to manage the shearing process effectively, with minimal manual intervention. This user-centric design facilitates a smooth and continuous workflow, enhancing overall operational efficiency.
The Q15 Series Gantry Shearing Machine stands out for its reliability, high performance, and safety features. It is an essential tool for businesses that require efficient and effective shearing operations, offering a sustainable solution for metal recycling and processing. With its advanced technology and durable construction, the Q15 Series represents a significant investment in improving the productivity and profitability of metal processing activities.



| Q15龙门剪切机技术参数/Technical parameters of Q15 gantry shearing machine | |||||
| 型号 Model | 最大剪切力 (KN)Maximum shear force | 刀口宽度(mm)Blade width | 剪切频率(T/M)Shear frequency | 剪料尺寸 Cutting size | 功率(KW)Power |
| Q15-200 | 2000KN | 1200 | 6-8 | 20*1200 | 22 |
| Q15-250A | 2500KN | 1200 | 6-8 | 20*1200 | 22*15 |
| Q15-250B | 2500KN | 1600 | 6-8 | 20*1600 | 22*15 |
| Q15-315A | 3150KN | 1200 | 6-8 | 35*1200 | 22*15 |
| Q15-315B | 3150KN | 1600 | 6-8 | 30*1600 | 22*22 |
| Q15-400 | 4000KN | 1600 | 6-8 | 30*1600 | 22*22 |
| Q15-500 | 5000KN | 1600 | 6-8 | 35*1600 | 30*30 |
